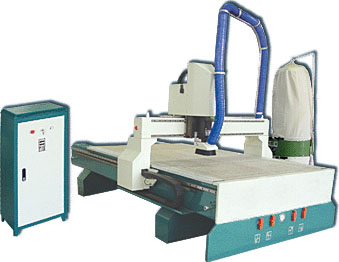

VS 1530A CNC felsőmaró
|
|||||||||||||||||||||||||||||||||||||
| Product | |
| Brand | Victor |
| Model | VS 1530 A |
| Product type | CNC router |
| Operation | |
| Table size (X/Y) | 1 700 mm x 3 650 mm |
| Vacuum table size (X/Y) | 1 500 mm x 3 000 mm |
| Travel (X/Y/Z) | 1 524 mm x 3 000 mm x 220 mm |
| Max. travel speed | 21 000 mm/min |
| Resolution | 0.015 mm |
| Power supply | 380 V / 50 Hz |
| Spindle speed | 18 000 rpm |
| Spindle power | 5 kW |
| Maximal tool diameter | 12 - 13 mm |
| Frame | Steel Frame |
| Dimensions | |
| Machine size | 3 660 mm x 2 200 mm x 1 550 mm |
| Weight | 2 500 kg |
Options
- Mitsubishi servo control
- Vacuum table with 5.5 kW vacuum pump
- Air compressor
- Turret type Automatic Tool Changer (ATC), 8 tools
CAD/CAM Software
SurfCAM 2 Axis Program, Version 2008
- SurfCAM Software Maintenance License (CMA), 1 year
- Postprocessor for the Victor machine
Delivery
- Installation
- 1-day training at customer's location: Victor machine, SurfCAM software
